Zapisz rekord
Podsumowanie:
Akcja zapisuje w bazie danych wartości z pól aktywnego formularza. W definicji akcji można używać przełączników umożliwiających sterowanie odświeżaniem formularza po akcji zapisu. Szczegółowe zachowanie nAxiom dla różnych konfiguracji zapisu rekordu przedstawiono na diagramach sekwencji w tym temacie.

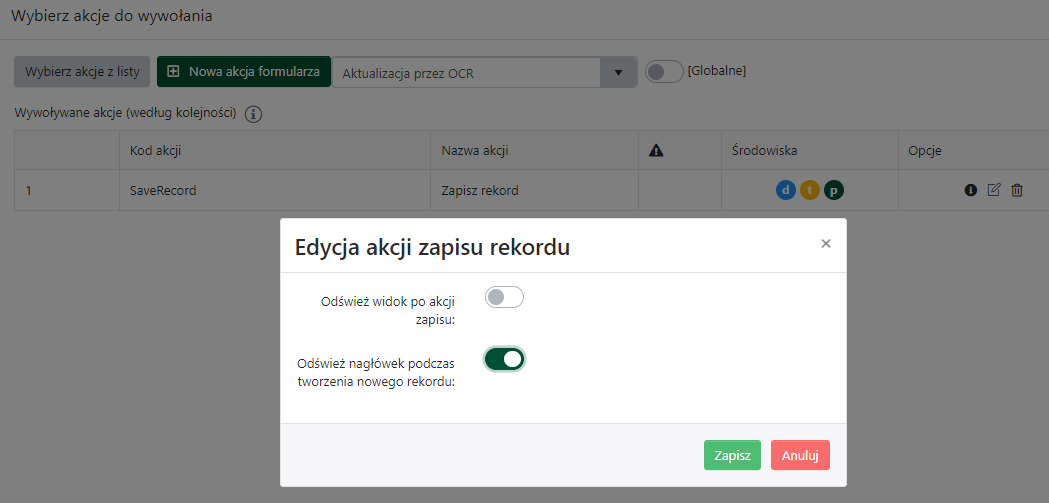

Domyślnie wraz z zapisem wykonywane jest odświeżenie formularza. Obejmuje ono odświeżenie wartości wyliczanych, zależności oraz odświeżenie sekcji innych niż pola formularza, w tym nagłówka (sekcja toolbar). W niektórych przypadkach może to być niepożądane. Dlatego akcja zapisz rekord ma dodatkowe przełączniki:
Akcję można przypisać do przycisku na formularzu i do przejścia na diagramie procesu.
Odświeżanie formularza podczas zapisu rekordu
W tej sekcji zamieszczono diagramy sekwencji ilustrujące czynności wykonywane podczas operacji zapisu, zależnie od stanu przełączników dotyczących odświeżania. Diagramy dotyczą czterech przypadków: utworzenie i aktualizacja rekordu w modelu uproszczonym (bez zmiany statusu) oraz utworzenie i aktualizacja rekordu w modelu podstawowym (ze zmianą statusu).
W każdym diagramie na początku wymieniono operacje wykonywane zawsze podczas zapisu rekordu, a następnie dodatkowe czynności w przypadku, gdy odświeżany jest tylko nagłówek (dotyczy tylko zapisu nowego rekordu) oraz gdy odświeżany jest formularz.
Form refresh case: A1. create new record without workflow transition EndUser EndUser FormButtonActionSaveRecord FormButtonActionSaveRecord Browser Browser FormContext FormContext BackendAPI BackendAPI [01] click [02] saveRecord [03] saveRecord common behavior save record [04] create instance data [05] create additional record data (Audit, ...) [06] create ACL permissions ACL Read permission control [07] check current ACL Read permissions alt [no permission] [08] update record's Id + RowVersion, end sequence without error alt [permission found] [09] update full context data without running JS script on FormContext change [10] update record Id in URL only, without GUI refresh, keep form state (chosen tabs, etc.) refresh Form OFF, refresh Header for new record OFF no actions refresh Form OFF, refresh Header for new record ON refresh form header [11] GetFormHeader ACL Read permission control [12] check current ACL Read permissions alt [no permission] [13] HTTP error 401: access unauthorized alt [permission found] [14] continue [15] return form header data and system data into form context [16] set system data in form context [17] GetTaskOwnership [18] GetLastTransitionDetails refresh Form ON refresh form [19] GetFormByRowGuid [20] run action set on form open ACL Read permission control [21] check current ACL Read permissions alt [no permission] [22] HTTP error 401: access unauthorized alt [permission found] [23] continue [24] return all form GUI elements and full context data [25] set all form context data [26] GetAuditDocument [27] GetComments [28] GetValuesForControls [29] GetValuesForSections [30] GetTaskOwnership [31] GetLookupData [32] GetFieldAccessModel [33] GetAttachmentList [34] GetLastTransitionDetails Form refresh case: A2: create new record with workflow transition via GUI EndUser EndUser FormButtonActionSaveRecord FormButtonActionSaveRecord Browser Browser FormContext FormContext BackendAPI BackendAPI common behavior [01] click [02] saveRecord [03] saveRecord workflow transition sequence to first status [04] run non status transitions and connected actions run gateways, service tasks, subprocess async., (support for backend actions only), skip saveRecord action in this action set run change status [05] calculate new Business Status [06] insert new record [07] insert additional record data (Audit, ...) [08] create ACL Permissions ACL Read permission control [09] check current ACL Read permissions alt [no permission] [10] update record's Id + RowVersion, break sequence without error alt [permission found] [11] update full context data without running JS script on FormContext change action set after [12] run action set after (support for backend actions only) [13] update record Id in URL only, without GUI refresh, keep form state (chosen tabs, etc.) refresh Form OFF, refresh Header for new record OFF no actions refresh Form OFF, refresh Header for new record ON refresh form header [14] GetFormHeader ACL Read permission control [15] check current ACL Read permissions alt [no permission] [16] HTTP error 401: access unauthorized alt [permission found] [17] continue [18] return form header data and system data into form context [19] set system data in form context [20] GetTaskOwnership [21] GetLastTransitionDetails refresh Form ON refresh form [22] GetFormByRowGuid [23] run action set on form open ACL Read permission control [24] check current ACL Read permissions alt [no permission] [25] HTTP error 401: access unauthorized alt [permission found] [26] continue [27] return all form GUI elements and full context data [28] set all form context data [29] GetAuditDocument [30] GetComments [31] GetValuesForControls [32] GetValuesForSections [33] GetTaskOwnership [34] GetLookupData [35] GetFieldAccessModel [36] GetAttachmentList [37] GetLastTransitionDetails Form refresh case: B1: update record without workflow transition EndUser EndUser FormButtonActionSaveRecord FormButtonActionSaveRecord Browser Browser FormContext FormContext BackendAPI BackendAPI [01] click common behavior [02] saveRecord [03] saveRecord save record RowVersion validation alt [RowVersion_BackendAPI == RowVersion_FormContext] [04] continue alt [RowVersion_BackendAPI != RowVersion_FormContext] [05] return error: other user modified this document ACL Update permission control [06] check current ACL Update permissions alt [no permission] [07] HTTP error 401: access unauthorized alt [permission found] [08] update record data [09] update additional record data (Audit, ...) ACL Read permission control [10] check current ACL Read permissions alt [no permission] [11] return record's Id, update record's RowVersion, break sequence without error alt [permission found] [12] update full context data without running JS script on FormContext change [13] update record Id in URL only, without GUI refresh, keep form state (chosen tabs, etc.) refresh Form OFF no actions refresh Form ON refresh form [14] GetFormByRowGuid [15] run action set on form open ACL Read permission control [16] check current ACL Read permissions alt [no permission] [17] HTTP error 401: access unauthorized alt [permission found] [18] continue [19] return all form GUI elements and full context data [20] set all form context data [21] GetAuditDocument [22] GetComments [23] GetValuesForControls [24] GetValuesForSections [25] GetTaskOwnership [26] GetLookupData [27] GetFieldAccessModel [28] GetAttachmentList [29] GetLastTransitionDetails Form refresh case: B2: call workflow transition via GUI (existing records) EndUser EndUser WorkflowStepButton WorkflowStepButton Browser Browser FormContext FormContext BackendAPI BackendAPI [01] click [02] call workflow transition action set before [03] run action set before (front & backend actions) It is recommended to use the saveRecordAction() action with the refreshForm OFF and refreshHeader OFF parameters as the first action in the action set. [04] run non status transitions and connected actions run gateways, service tasks, subprocess async., (support for backend actions only) run target workflow step change status logic ACL Update permission control [05] check current ACL Update permissions alt [no permission] [06] HTTP error 401: access unauthorized alt [permission found] [07] continue Change status condition control alt [condition failed] [08] break transition, return condition error alt [condition passed] [09] continue Update record [10] calculate new Business Status [11] update record's Business Status Update record's ACL permisssion [12] calculate new set of ACL Permissions [13] overwrite record's ACL Permissions action set after [14] run action set after (front & backend actions) It is recommended to use the refreshFormAction() action as the last action in the action set.
